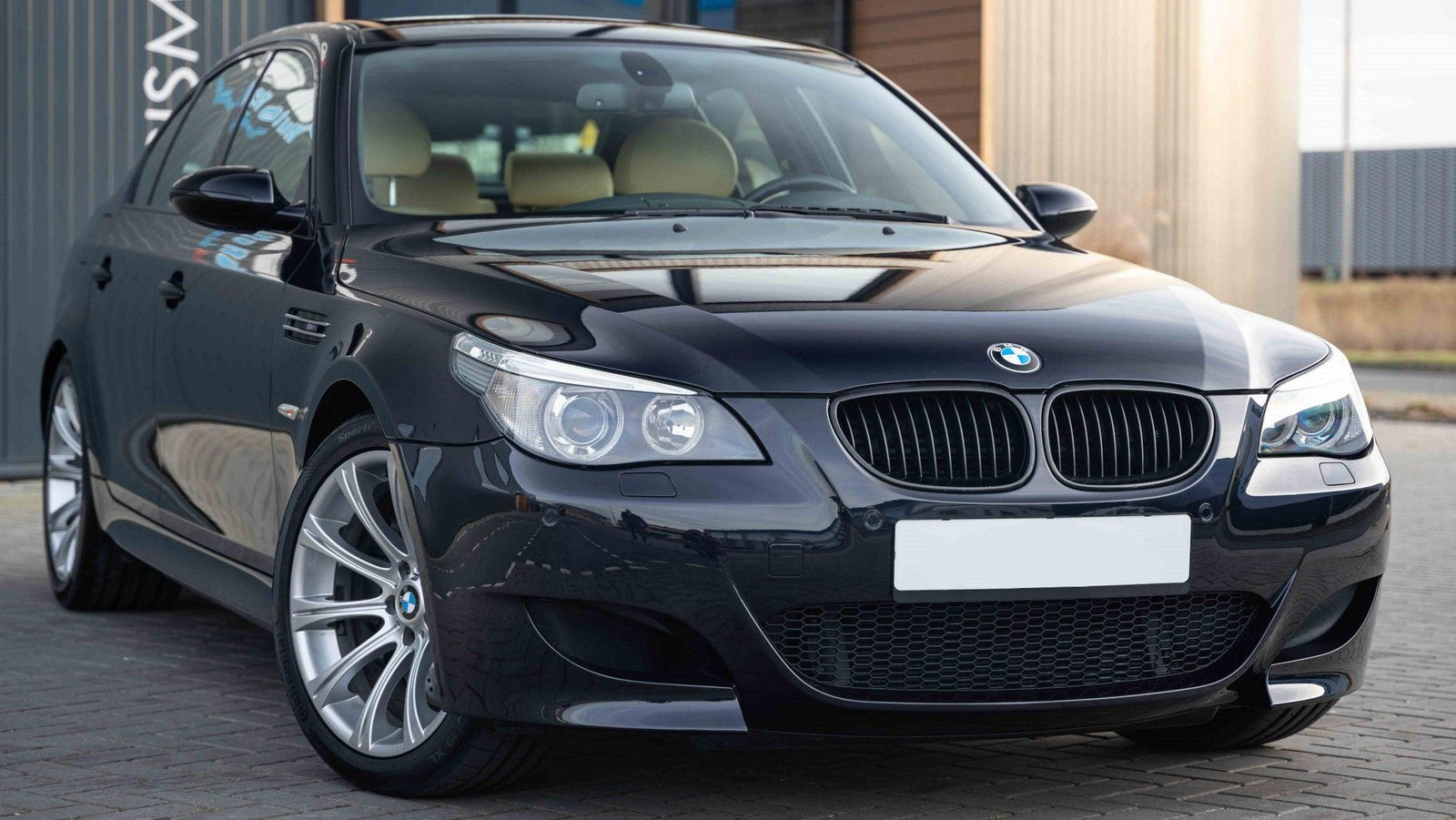

BMW 5 Series E60 / E61 (2003–2010) Reliability Guide
Which used BMW 5 Series should you choose? Strengths, weaknesses, and engines to prioritize.
The BMW 5 Series E60 (sedan) and E61 (Touring) were produced from 2003 to 2010. This was a pivotal generation for BMW, marking a clear aesthetic and technological break with the previous E39. Designed under the direction of Chris Bangle, the E60 introduced a bolder design, new direct-injection engines, and most notably, the first-ever iDrive system in a 5 Series.
Available in rear-wheel drive or xDrive, with manual or automatic transmission, and offered in four, six and eight cylinder versions, the E60 has appealed to both high-mileage drivers and lovers of dynamic driving.
Do you already own a 5 Series E60 and are looking to upgrade it? Visit our online store.
Carplay modules, replacement door handles, black grilles and many other accessories are available.
Overall reliability and structural points
The BMW E60 is based on a chassis combining aluminium at the front and steel at the rear, in order to achieve a near 50/50 weight distribution. This design improves dynamic balance, but makes certain repairs (wings, front hood) more expensive, as they require an aluminium-certified workshop .
The facelifted (LCI) versions produced from March 2007 onwards benefit from numerous improvements:
-
Next-generation iDrive (CIC, smoother and more reliable than CCC)
-
electronically controlled automatic transmission (“shift-by-wire”)
-
adaptive headlights and modernized driver assistance systems
-
regenerative braking and new electronic control units
Overall, electronic reliability is acceptable , but the steering sensors, battery module (MPM) and iDrive system may have problems over time.
Reliability of BMW 5 Series E60 / E61 diesel engines
520d – 2.0 four-cylinder (M47 then N47)
The 520d is the most common model, particularly in France, because it combines favorable tax treatment with fuel efficiency. However, not all 520ds are created equal.
M47 (2003–2007)
The M47TU2D20 engine was fitted to the early models. It was an evolution of the M47 engine already well-known in the E46 3 Series.
The positive points:
-
Simple mechanics, timing chain at the front (easy to replace).
-
Excellent performance (163 hp for approximately 6 L/100 km real-world).
-
Decent performance, inexpensive maintenance.
Points to be aware of:
-
Swirl flaps : These flaps, located in the intake manifold, can detach and be drawn into the engine, causing serious damage. The solution is to remove them or replace them with reinforced versions.
-
Turbo and EGR valve : susceptible to fouling, especially on urban journeys.
-
Vacuum hoses and oil breather : to be replaced preventively every 100,000 km.
Verdict: a reliable and economical engine, perfect for high-mileage drivers if well maintained.
N47 (2007–2010)
The N47 engine replaced the M47 in the facelifted (LCI) version. More modern, it improved performance (177 hp then 184 hp on some versions) and reduced emissions, but it suffers from a major flaw.
Recurring problem: the rear timing chain.
Located on the gearbox side, it is extremely difficult to access.
-
Symptom: metallic noise when cold or idling , which intensifies over time.
-
Replacement cost: often more than €1,500, or even €2,000 at a dealership.
-
If the chain breaks, the engine is usually destroyed.
Verdict: performs well but requires close monitoring. It is essential to check if the timing chain has been replaced or if the engine has been made more reliable.
525d, 530d and 535d – 6-cylinder in-line M57
These engines are the benchmark for BMW diesels. Smooth, powerful and remarkably reliable, they represent the heart of the E60 5 Series range.
525d – M57TU then M57TU2 (177 to 197 hp)
-
177 hp versions (before 2007): engine identical to that of the 330d E46, very robust.
-
197 hp versions (after 2007): slight update to meet Euro 4 standards.
Points to watch out for:
-
Swirl flaps , like on the 520d: to be removed or made more reliable.
-
EGR valve and manifold: frequent fouling, cleaning recommended every 100,000 km.
-
Oil leaks at the rocker cover and crankcase.
Verdict: a fuel-efficient, balanced and durable engine, capable of handling very high mileage.
530d – M57N then M57N2 (218 to 235 hp)
This is undoubtedly the best diesel engine for this generation.
It combines power, comfort and exceptional longevity.
-
218 hp versions until 2007, then 231/235 hp on the last E60 LCI.
-
Exceptional performance: smooth operation from 1,500 rpm, controlled fuel consumption (7 L/100 km).
Reliability:
-
The M57N2 is known to exceed 400,000 km without major problems.
-
Regular maintenance is essential (oil changes every 10,000 to 15,000 km).
-
The known problems are limited to a few sensors (mass airflow meter, turbo pressure) and swirl flaps.
Verdict: the diesel engine is the one to choose without hesitation.
535d – M57N2 twin-turbo (272 to 286 hp)
The highest-performing version in the diesel range. The M57N2 twin-turbo engine develops up to 580 Nm of torque and delivers performance close to that of a sporty petrol engine.
The advantages:
-
Lightning-fast recoveries, incredible flexibility.
-
Overall, mechanical reliability is very good if rigorously maintained.
-
The ZF 6HP automatic gearbox is perfectly suited.
Weak points:
-
The secondary turbocharger can wear out after 200,000 km.
-
High-pressure pump to monitor on high-mileage vehicles.
-
More expensive maintenance (two turbos, more sensors, specific diesel filter).
Verdict: an exceptional engine, reliable but reserved for enthusiasts aware of the maintenance cost.
Reliability of the petrol engines of the BMW 5 Series E60 / E61
520i – 2.2, 2.0 and 2.5 L (M54, N46 then N43)
The 520i has had several successive engine versions:
-
M54B22 (until 2005) : 2.2L inline 6-cylinder, smooth and reliable.
-
Monitoring of the cooling system (water pump, thermostat, expansion tank).
-
Frequent oil consumption, but not serious if monitored.
-
-
N46B20 (2005–2007) : 4 cylinders, more economical but less refined, sometimes noisy.
-
Intake coils and VANOS need replacing.
-
-
N43 (after 2007) : direct injection, decent performance, but fragile injectors and irregular idle on some examples.
Verdict: the 520i is reliable in its 6-cylinder versions (M54), but should be avoided in N43 if frequent urban use is required.
523i / 525i – M54 then N52 (2.5 to 3.0 L, 177 to 218 hp)
-
M54 : excellent mechanical base, already used on the E39.
-
Check the rocker cover gaskets and the coolant hoses.
-
VANOS actuators can weaken over time, causing a lack of power.
-
-
N52 (2005–2010) : more modern, all-aluminum block with variable valve timing (Double-VANOS and Valvetronic).
-
Reliability is quite good, but some suffer from noisy hydraulic tappets when cold , which were corrected after 2008.
-
Verdict: the 525i is an excellent compromise between reliability, smoothness and reasonable fuel consumption.
530i – M54, N52 then N53 (231 to 272 hp)
The 530i is the most balanced petrol version.
-
M54 (until 2005) : reliable, but the VANOS can cause a slight loss of power.
-
N52 (2005–2007) : arguably the best petrol engine in the range, quiet, smooth and very durable.
-
N53 (2007–2010) : more modern but more temperamental direct injection (injectors, coils, high-pressure pump).
Verdict: the 530i N52 is the safe bet — reliable, pleasant and without any major known drawbacks.
535i / 545i / 550i – N62 V8 (3.5, 4.4 and 4.8 L)
The V8 versions are spectacular but require a significant budget.
-
N62B44 / N62B48 : Valvetronic variable valve timing and VANOS on both camshafts.
-
Decent mechanical reliability, but expensive maintenance .
-
Chronic oil leaks (rocker cover, valve stem seals).
-
Unstable idle or high oil consumption = signs of Valvetronic wear.
🔧 Note: Replacing valve stem seals normally requires removing the cylinder heads. However, kits are available for replacing them without removing the cylinder heads.
Verdict: Noble V8s, but expensive to maintain. Recommended only for serious enthusiasts.
Electronics and equipment
-
iDrive CCC (2003–2007) : slow, sometimes faulty.
-
iDrive CIC (2007–2010) : significantly more stable and ergonomic.
-
6HP ZF automatic gearbox : robust if changed every 60,000 km.
-
Active steering / angle sensors : possible failures between 2005 and 2006.
-
Premium equipment (HUD, radar, adaptive headlights, heated seats): reliable, but repairs are expensive.
How to check for known problems before buying
-
Timing chain (N47) : listen for a metallic clicking sound when cold.
-
Turbo (diesel) : check that it increases in load without excessive whistling or blue smoke.
-
Cooling system : visible leaks around the expansion tank or thermostat = bad sign.
-
VANOS / tappets (petrol) : irregular idle or dry noise when starting.
-
Automatic transmission : jerking, slipping or abrupt downshifting = oil change required.
-
Electronics : test everything (GPS, air conditioning, radar, iDrive, headlights, sensors).
Verdict: Which BMW 5 Series E60 should you choose?
Preferred option:
-
530d or 525d (M57): exemplary reliability.
-
530i (N52): benchmark petrol, balanced and durable.
-
Models after 2007 (LCI), better equipped and more reliable.
To avoid:
-
520d N47 without proof of timing chain replacement.
-
545i/550i without clear history (expensive maintenance).
-
Early models (2003–2004) with faulty iDrive CCC.
In summary
The BMW 5 Series E60 is a stylish, comfortable, and very enjoyable premium sedan. Its reliability depends primarily on the engine chosen and the maintenance schedule.
A well-maintained 530d or 530i represents one of the best pleasure/reliability ratios on the German premium used car market today.
